3-Channel White Noise Generator
Three independent digital white-noise channels that inject masking audio into walls, windows, and cavities to reduce vibro-acoustic eavesdropping.
Description
The 3-Channel White Noise Generator drives transducers and speakers that inject masking noise into walls, windows and cavities to reduce eavesdropping through building structures. Its three independent channels let you set the right noise level for each part of a room.
It is the generator on its own, for building a custom system or expanding an existing one.
How it works
Sound travels through solid and light structures and through air voids. The generator sends white noise to transducers mounted on surfaces, which vibrate to mask speech carried through the structure, and to speakers that fill voids and ducts with noise.
Wire transducers on solid surfaces such as concrete walls to one transducer channel, and those on light surfaces such as glass or drywall to the other. Connect speakers to the speaker channel, power on and adjust each channel separately. Follow the load limits below to avoid damage.
Specifications

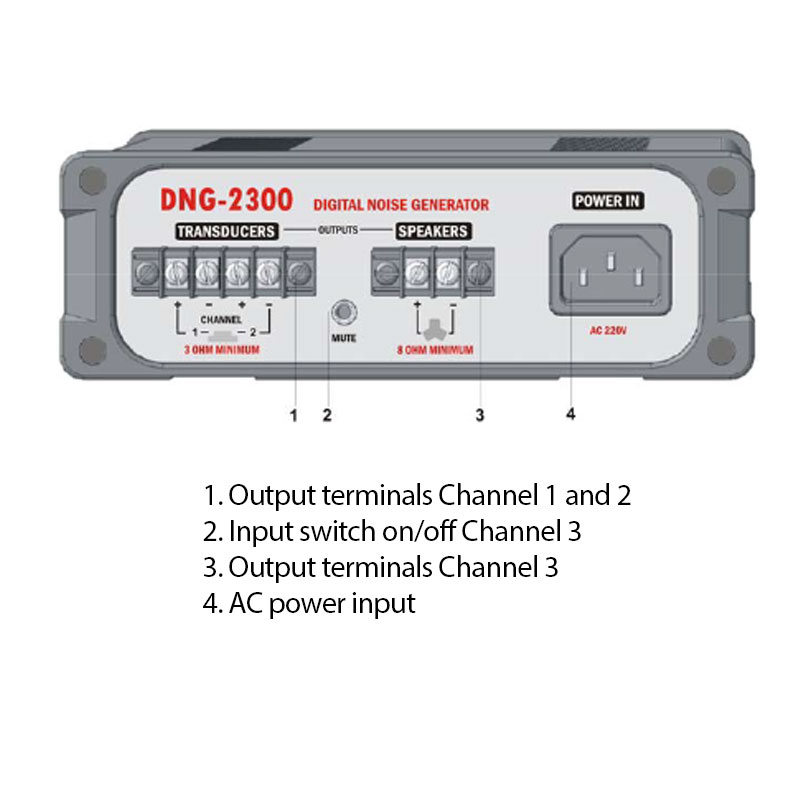

- Three independent output channels: two transducer channels and one speaker channel

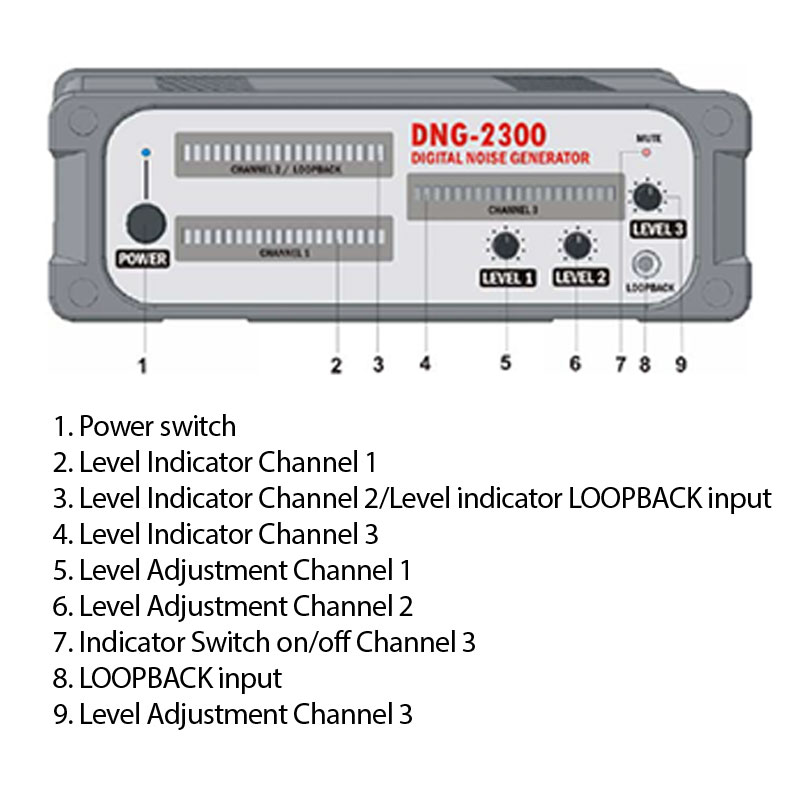

- Individual level control on each channel
- Mute input to switch the speaker channel off temporarily
- Transducer channels: minimum 3-ohm load
- Speaker channel: minimum 8-ohm load
- Power: 110–220 V AC, 50–60 Hz
What’s Included
- AC power cord with US adapter
Who it’s for
It is for installers and organizations building conversation-privacy systems in rooms they own or control:
- Boardrooms and secure meeting rooms
- Executive and legal offices
- Facilities adding protection to an existing transducer system
- Security integrators fitting custom rooms
- Transducers and speakers are not included. It masks sound; it does not detect, disable or remove listening devices.
Frequently Asked Questions
What does the 3-Channel White Noise Generator do?
It injects masking audio into walls, windows and cavities through three independent channels to reduce vibro-acoustic eavesdropping.
Why three channels?
Each channel runs independently, so you can cover different surfaces or areas at once.
How is it powered?
AC power, 110–220V, with the included cord and US adapter.
What output does it have?
Two transducer channels and one speaker channel, each with its own level control. Transducer channels take a minimum 3-ohm load and the speaker channel a minimum 8-ohm load.
Are transducers included?

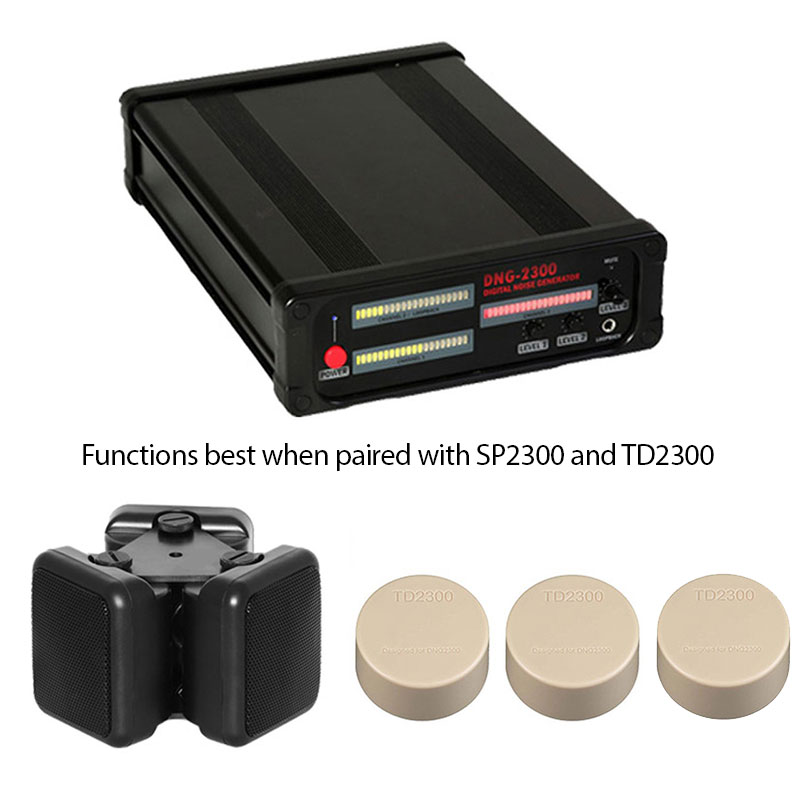

The listing includes only the power cord and adapter. Ask us about compatible transducers and speakers.
Does it find or remove bugs?
No. It masks sound but does not detect, disable or remove any device.
Is it legal to use?
Yes, for privacy protection on property you own or control. You are responsible for local law.
Can I return it?
No. Surveillance and counter-surveillance products are final sale. If ISS made an error with your order, you can request an exchange within 5 days of receipt with an RMA number; a 35% restocking fee applies.
For Legal & Authorized Use Only. Sold for privacy protection and authorized counter-surveillance on property you own or are authorized to inspect. Buyer is responsible for local law.
Additional information
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 13.75 × 8.25 × 3.25 in |
